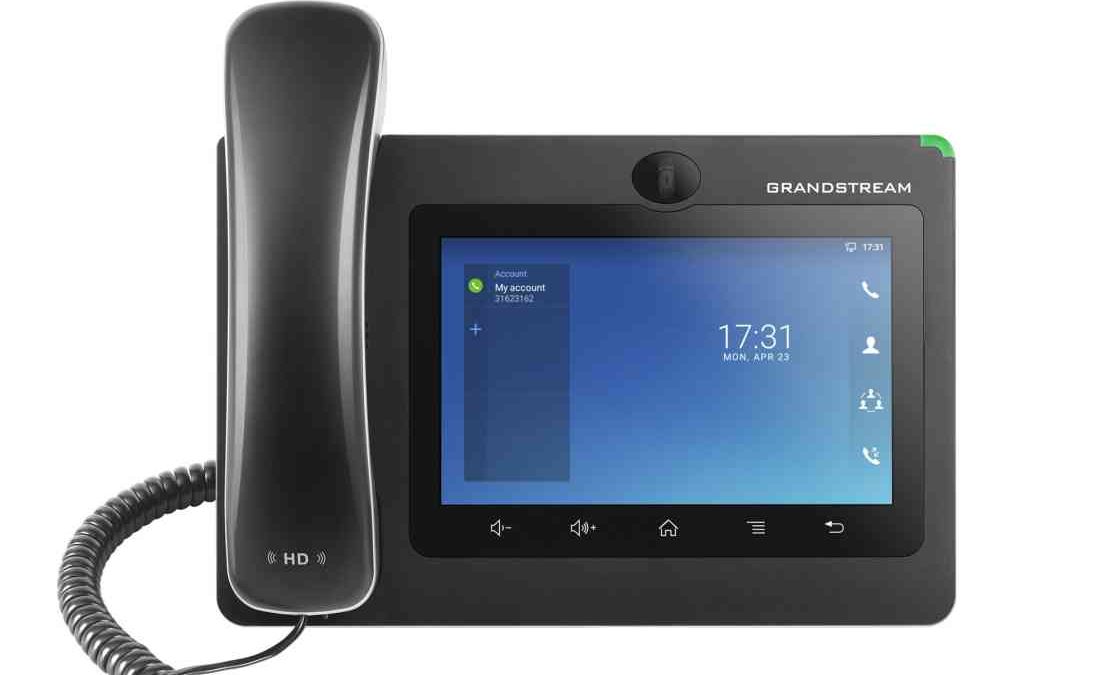

Grandstream GXV3370 IP Video Phone

General

• Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),
  DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP,
  IPv6, OpenVPN®
• Network Interfaces: Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
• Graphic Display: 7″ 1024×600 capacitive touch screen (5 points) TFT LCD
• Camera: Tiltable mega-pixel CMOS camera with privacy shutter, 720p 30fps
• Integrated Bluetooth 4.0 + EDR
• WiFi: dual-band 802.11a/b/g/n (2.4GHz & 5GHz)
• Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB port, SD, HDMI-out (1.4 up to 720p 30fps)
• Feature Keys: 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and
  BACK
• HD Audio: HD handset and speakerphone with support for wideband audio
• Base Stand: built-in stand with multiple adjustable angles. Wall mountable.
• QoS: Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
• Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more
• Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file

Voice Codecs and Capabilities

• G.711µ/a
• G.722 (wide-band)
• G.726-32
• iLBC
• G.729A/B
• In-band and out-of-band
• DTMF (In audio, RFC2833, SIP INFO)
• VAD
• CNG
• AEC
• PLC
• AJB
• AGC
• ANS

Video Codecs and Capabilities

• H.264 BP/MP/HP
• Video resolution up to 720p
• Frame rate up to 30 fps
• Bit rate up to 2Mbps
• 3-way video conference (720p 30fps)
• Anti-flickering
• Auto focus and auto exposure

Telephony Features

• Hold
• Transfer
• Forward (unconditional/no-answer/busy)
• Call park/pickup
• 7-way audio conference(including the host)
• Shared-call-appearance (SCA) / bridged-line-appearance
  (BLA)
• Virtual MPK
• Downloadable contacts (XML, LDAP, up to 1000 items)
• Call record(local and server)
• Call log (up to 1000 records)
• Call waiting
• Auto answer
• XML customisation of screen
• Click-to-dial
• Flexible dial plan
• Hot desking
• Personalized music ringtones and music on hold
• Server redundancy & fail-over

Sample Applications

• Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser, Voicemail, Clock, Recorder, GS Market, etc.
• Support 3rd party apps: Skype, Google Hangouts, Skype for Business, etc. API/SDK available for advanced custom application development

Power & Green Energy Efficiency

• Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
  *USB enabled only when power supply or PoE+ is used.

Temperature and Humidity

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Package Content

• GXV3370 phone
• Handset with cord
• Universal power supply
• Network cable
• Screen cleaning cloth
• Quick installation guide
• GPL license
• Wall mount bracket
